Guiding strips AL-11 anti-slip


Aluminium guiding strips with anti-slip surface – type AL-11

Standard:  In accordance with the international norm ISO 23599/2012.
Dimensions:  280×35 mm or 280×30 mm
Material:  AlMgSi (natural) + upper anti-slip tape (colour options – black, grey,…)
Application:  Surface mounted tactile guiding strips made of natural aluminium are suitable (as a tactile orientation system for blind and visually impaired people) for indoor applications. There is non-abrasive slip-resistant tape applied on the top of the strips.
Guiding strips with anti-slip surface are available in 3 versions:
– with pins (for fixation into pre-drilled holes in floors)
– without pins (for fixation using additional glue like MAMUT or similar)
– self-adhesive with high-quality AFT adhesive tape

Order numbers of all versions are mentioned below the following photos of aluminium guiding lines.

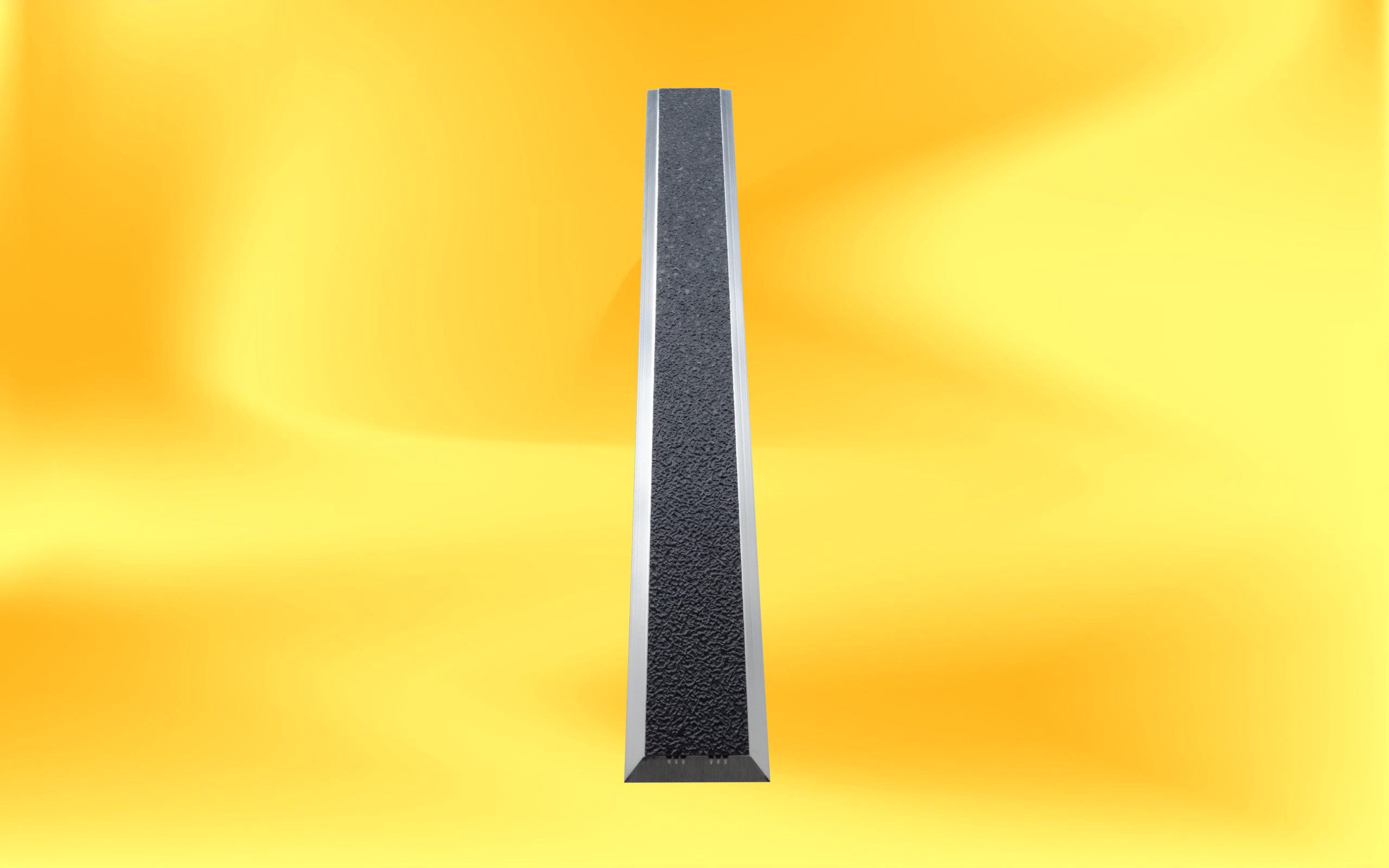

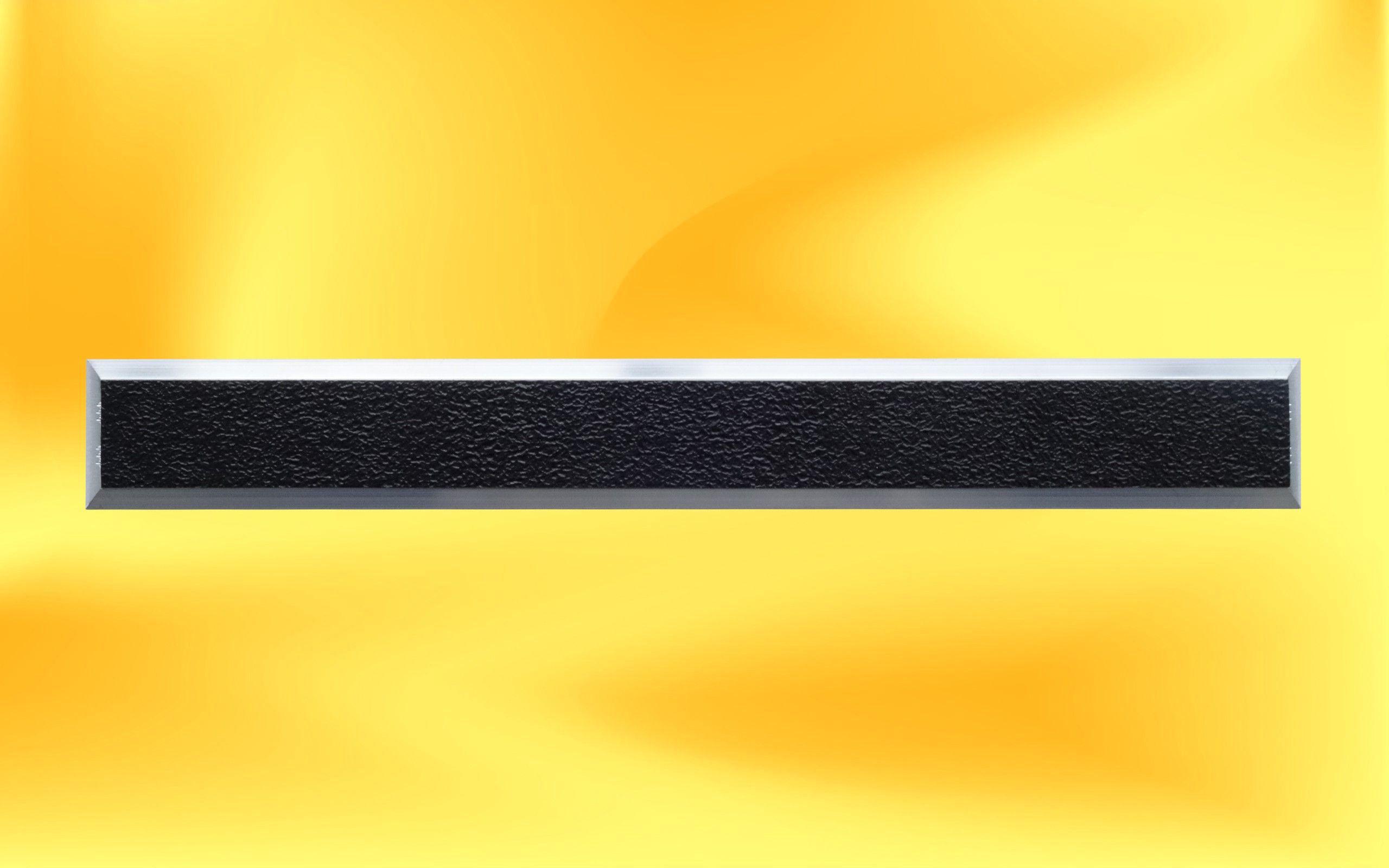

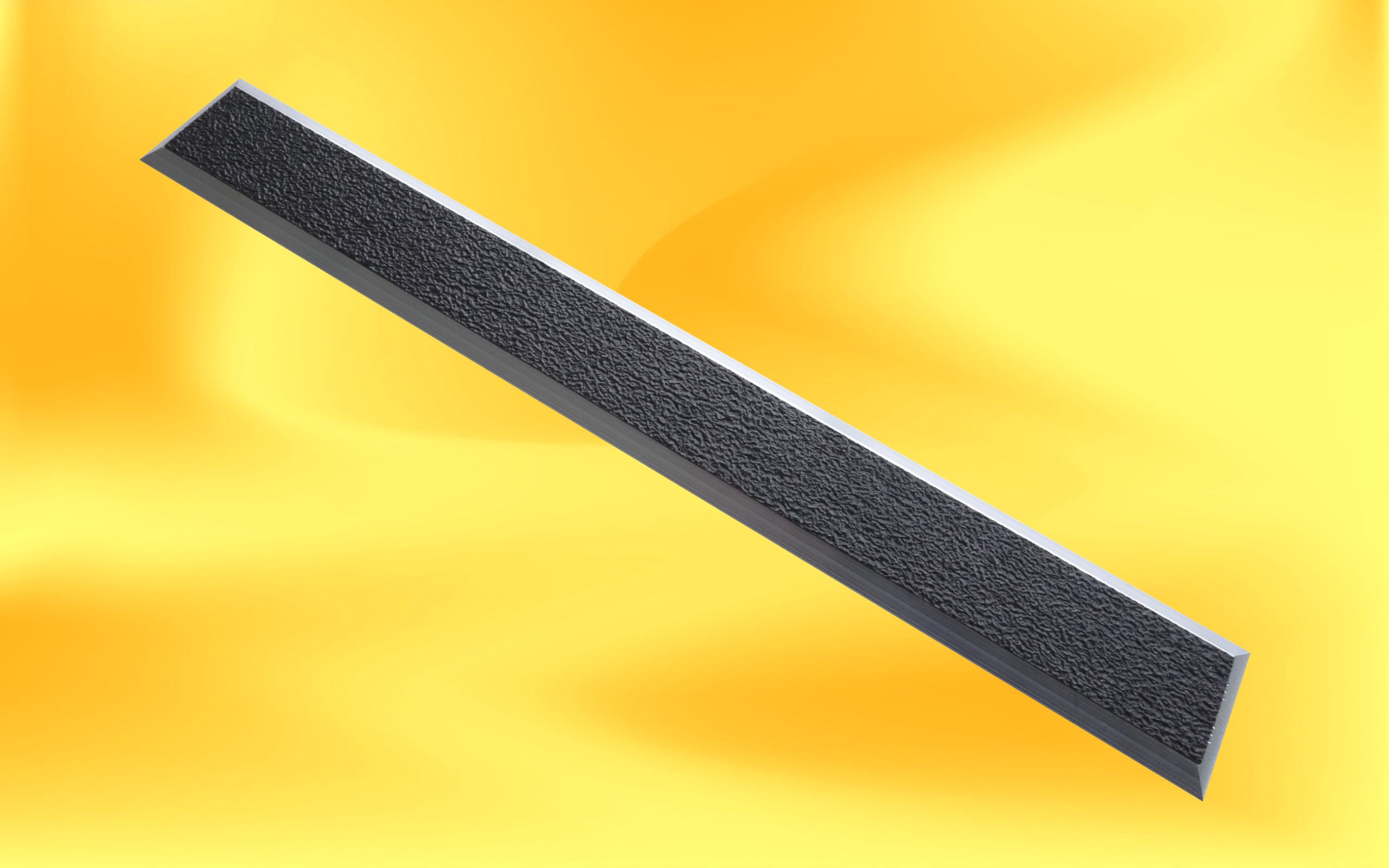

aluminium guiding strip with anti-slip adhesivealuminium guiding strip with anti-slip adhesivealuminium guiding strip with anti-slip adhesive

Available versions with order numbers:

AL-1101      Guiding strip 280x35x4,5 mm with anti-slip tape – without pins
AL-1101-P  Guiding strip 280x35x4,5 mm with anti-slip tape – with pins
AL-1101-S  Guiding strip 280x35x5 mm with anti-slip tape – self-adhesive (AFT tape)
AL-1111      Guiding strip 280x30x4,5 mm with anti-slip tape – without pins
AL-1111-P  Guiding strip 280x30x4,5 mm with anti-slip tape – with pins
AL-1111-S  Guiding strip 280x30x5 mm with anti-slip tape – self-adhesive (AFT tape)
