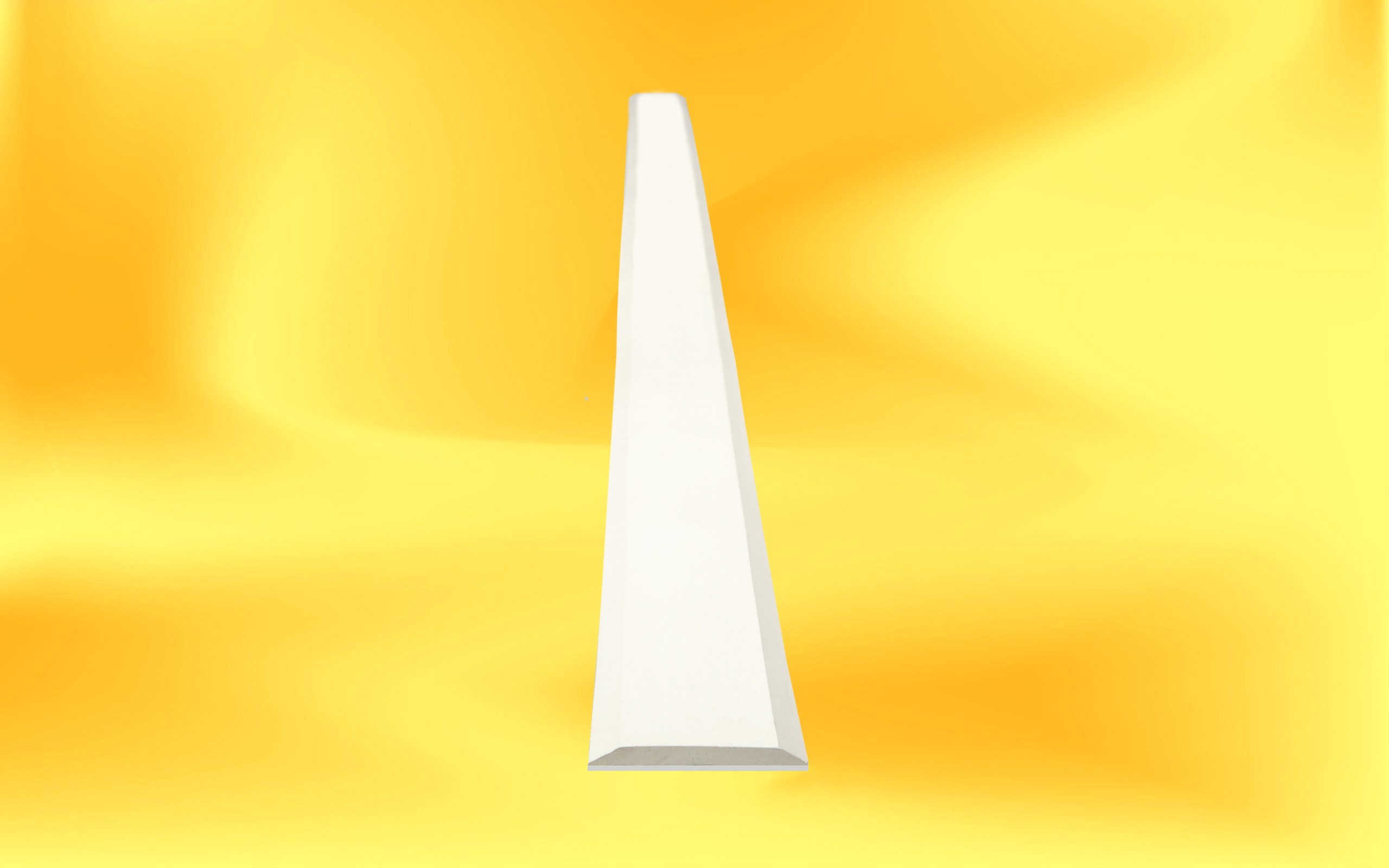

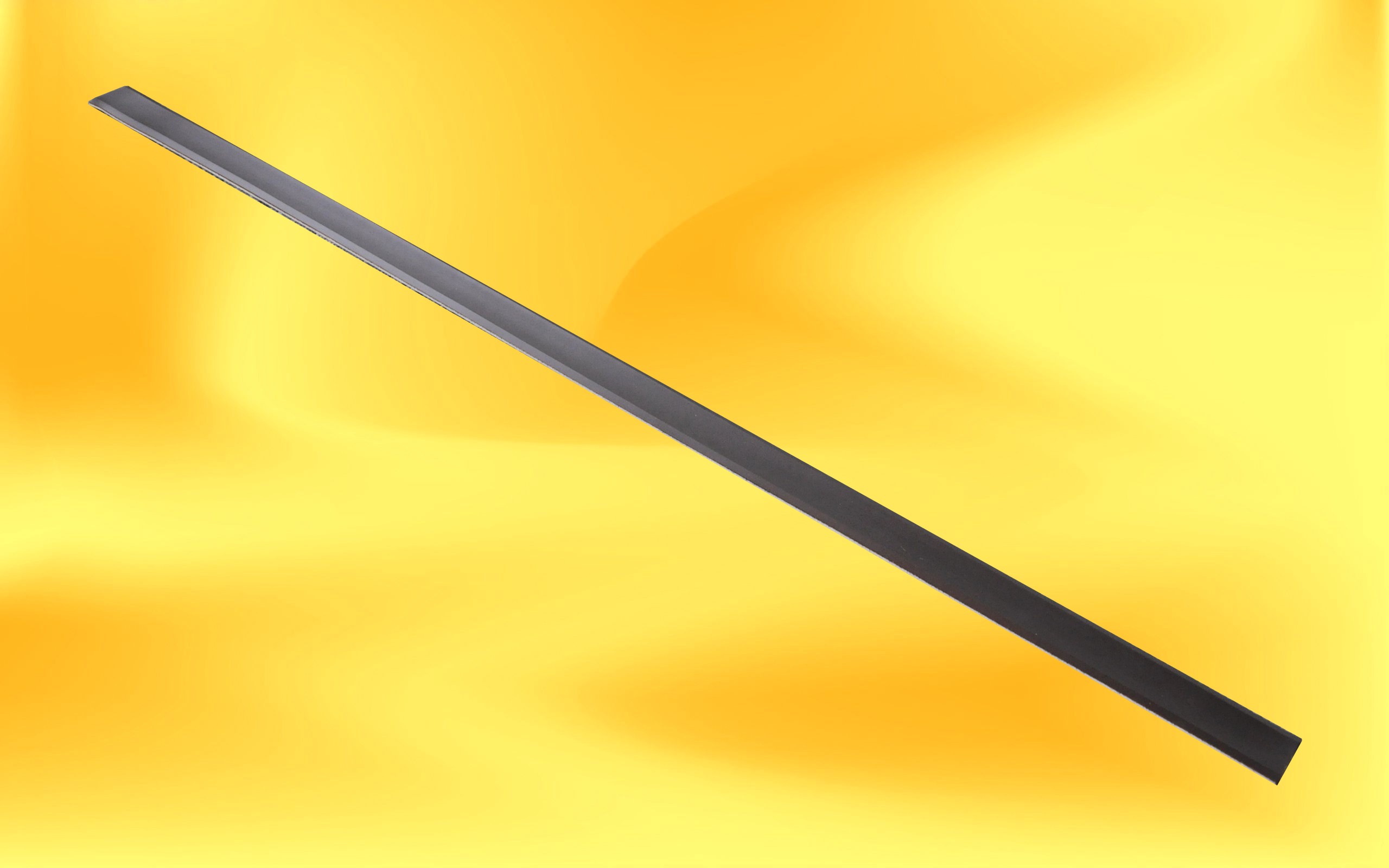

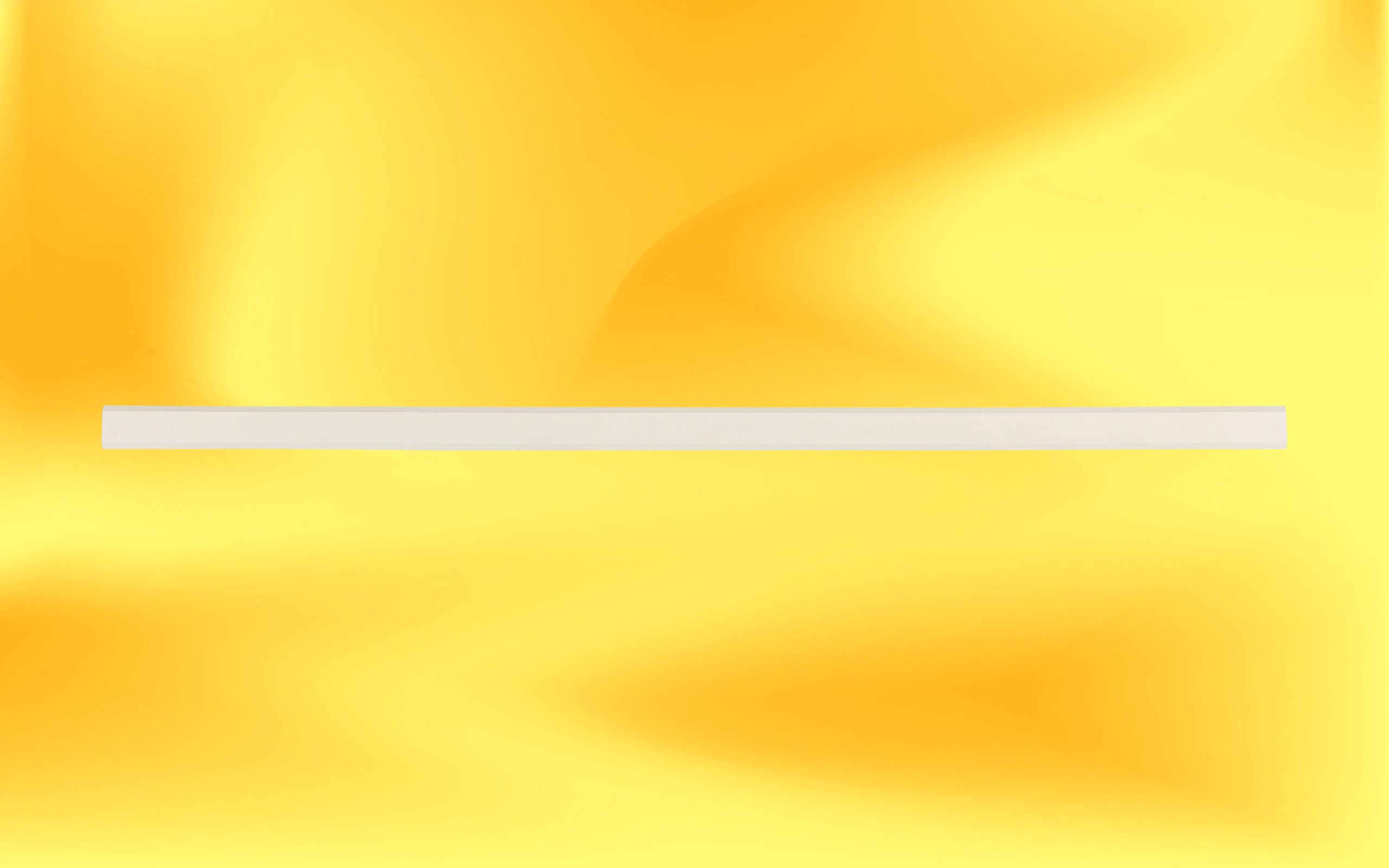

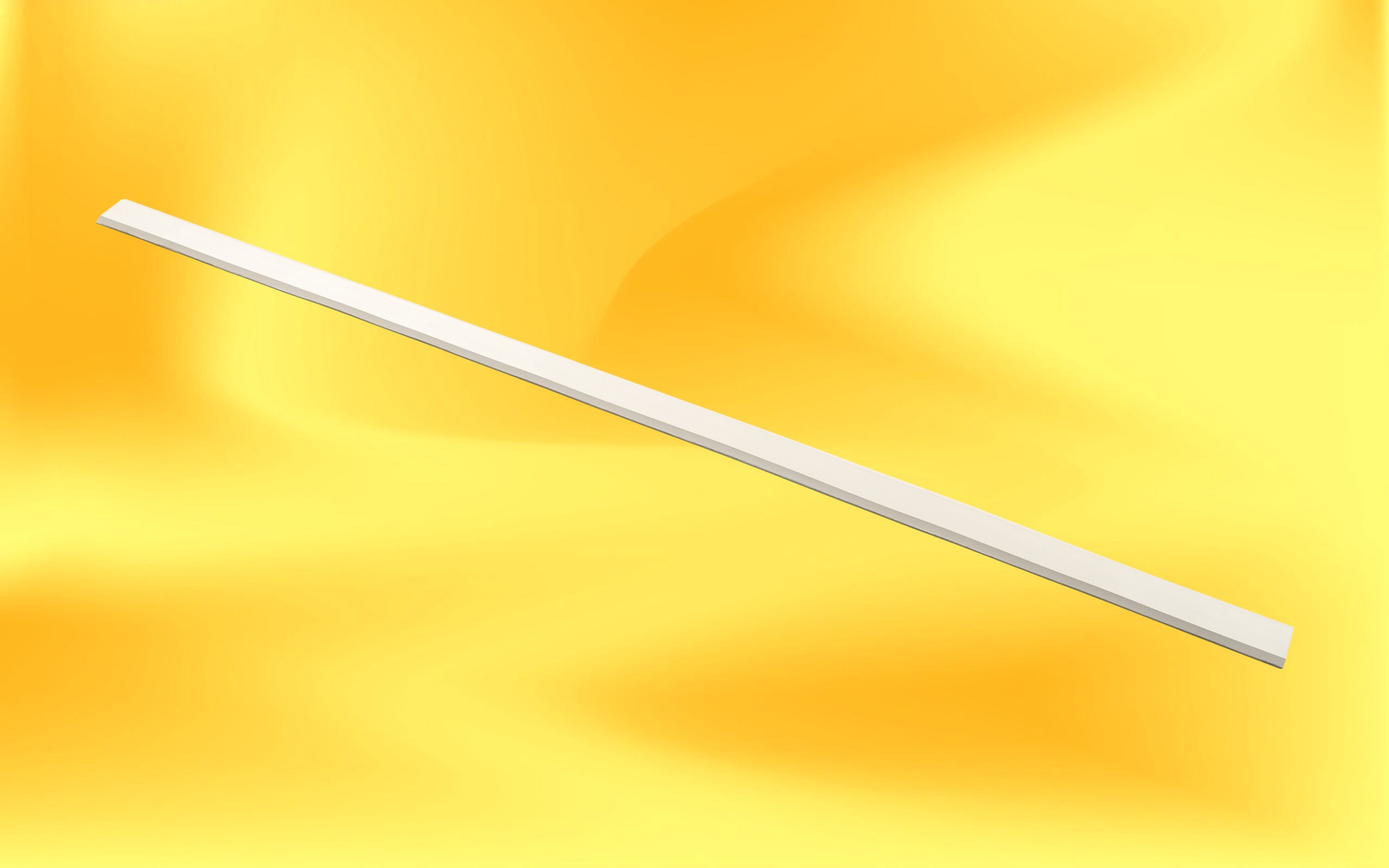

Guiding line ME-405


Self-adhesive indoor guiding line type ME-405 / ME-406
…for creating a continual guiding line for visually impaired without spaces.

In accordance with the international norm ISO 23599/2012.
Dimensions:  910 x 35 x 5 mm (or 910 x 30 x 3,5 mm at ME-406 type)
Made of elastomer (self-adhesive belt) and two-component cold plastic.
The basic belt is glue-coated in the bottom (on polyurethane basis) and covered by a protection film.
Colour:  white, black, yellow or grey
Suitable only for indoor applications, on surfaces such as clay, marble or granite tiles, etc.
Installation using glue that is already pre-applied at the bottom of the product.

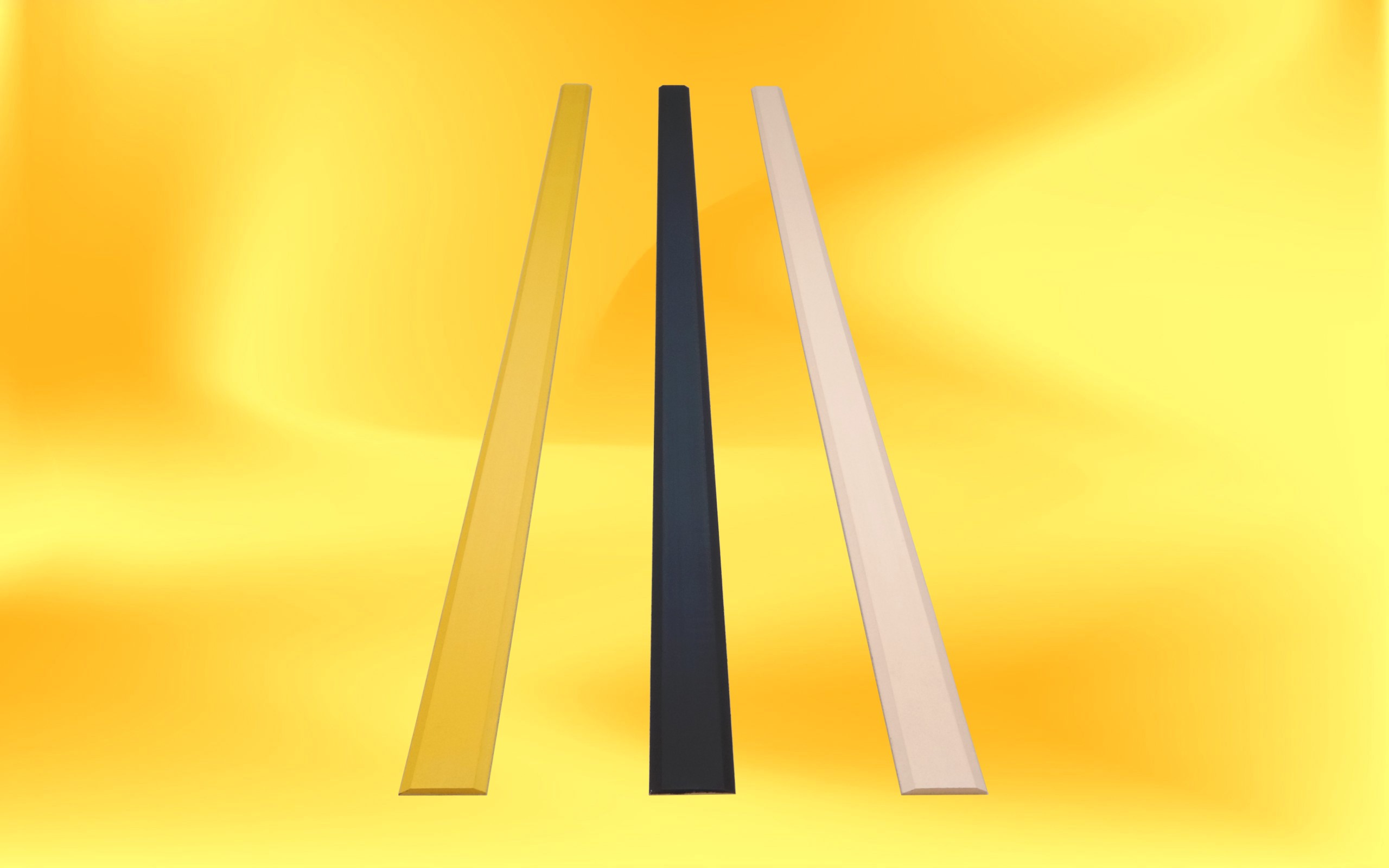

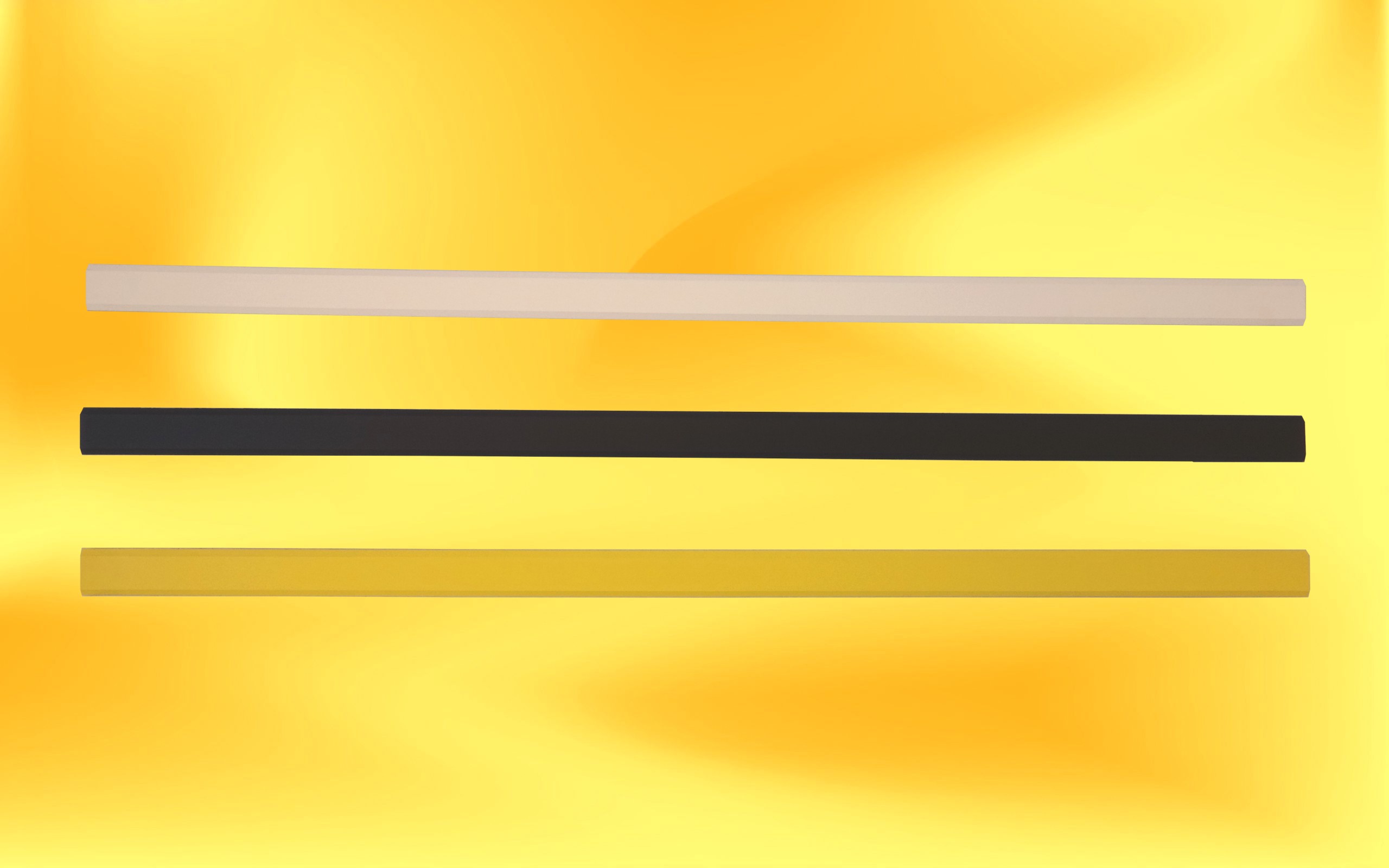

ME-4052-SStrip 910 - 02Strip 910 - 03

Guiding line ME-405Guiding line ME-405Guiding line ME-405

Available colour combinations with order numbers:

ME-4051-S   Guiding line 910x35x5 mm white
ME-4052-S   Guiding line 910x35x5 mm black
ME-4053-S   Guiding line 910x35x5 mm yellow
ME-4054-S   Guiding line 910x35x5 mm grey
ME-4055-S   Guiding line 910x35x5 mm red

ME-4061-S   Guiding line 910x30x3,5 mm white
ME-4062-S   Guiding line 910x30x3,5 mm black
ME-4063-S   Guiding line 910x30x3,5 mm yellow
ME-4064-S   Guiding line 910x30x3,5 mm grey
ME-4065-S   Guiding line 910x30x3,5 mm red
