Hendi FriendlyOrientation systems for the blind
and visually impaired

Tactile pad ME-23


Tactile pad warning type ME-23 (connectable version)
…with studs ∅25 mm in form of truncated cones with flat top

Standard:  In accordance with Russian norm GOST R 52875 (ГОСТ Р 52875).
Dimensions:  540 x 540 mm
Material:  Made of elastomer (belt) and two-component cold plastic (studs).
Colour:  Various colour combinations (see below).
Application:  Used as surface mounted tactile paving (warning and signal tactile indicators) for outdoor as well as indoor applications. Suitable for placement over the existing paving. Therefore, installation is simple, quick and cost effective (it eliminates excavation and the footpath can be accessible within a few hours).
Exterior:  Suitable for the application on matured bitumen and concrete surfaces with installation by gluing using two-component cold plastic (methacrylate resin).
Interior:  Installation over surfaces such as ceramic / clay, marble or granite tiles, etc. with use of glue that is already pre-applied at the bottom of the product and covered by a plastic protection film.

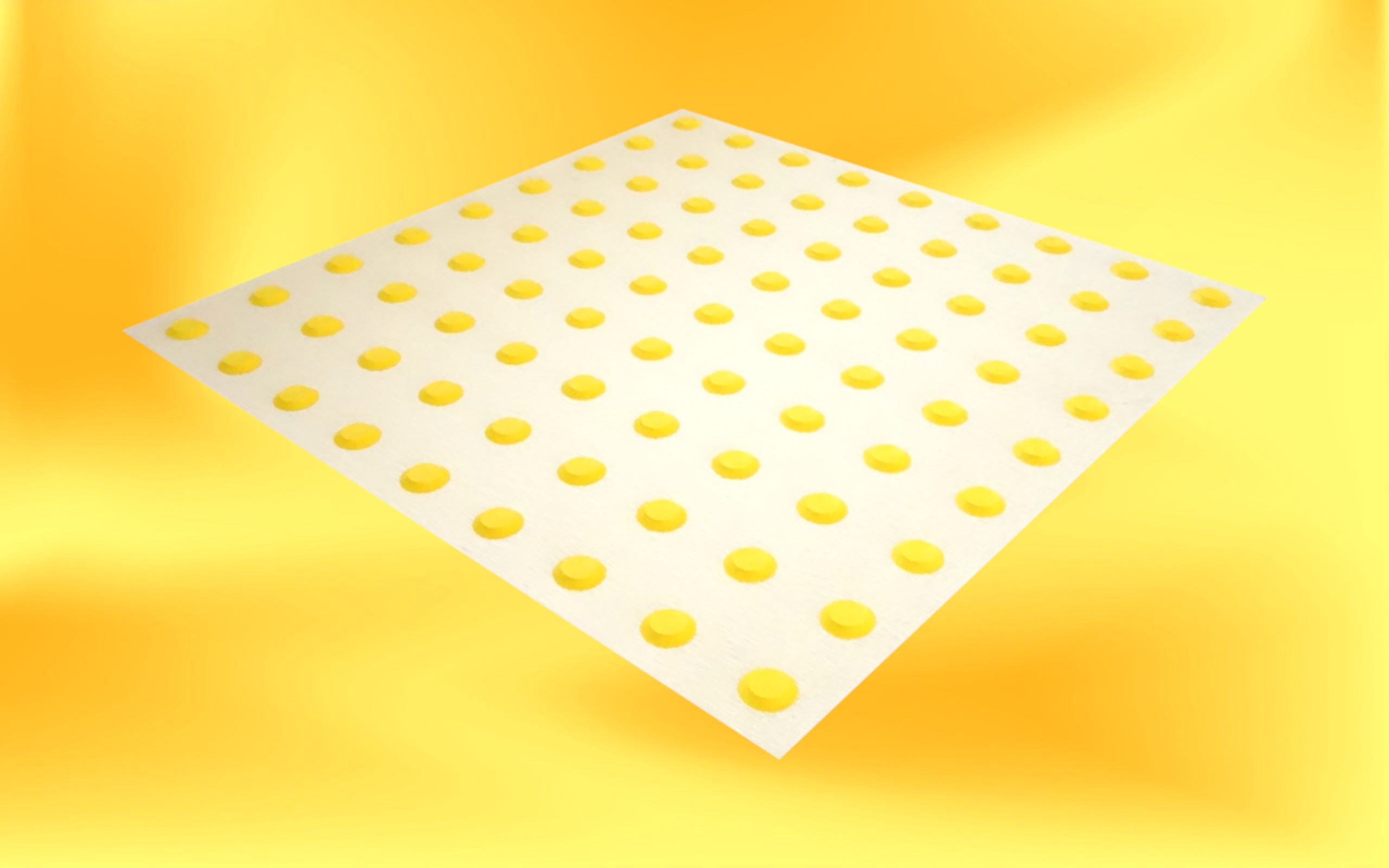

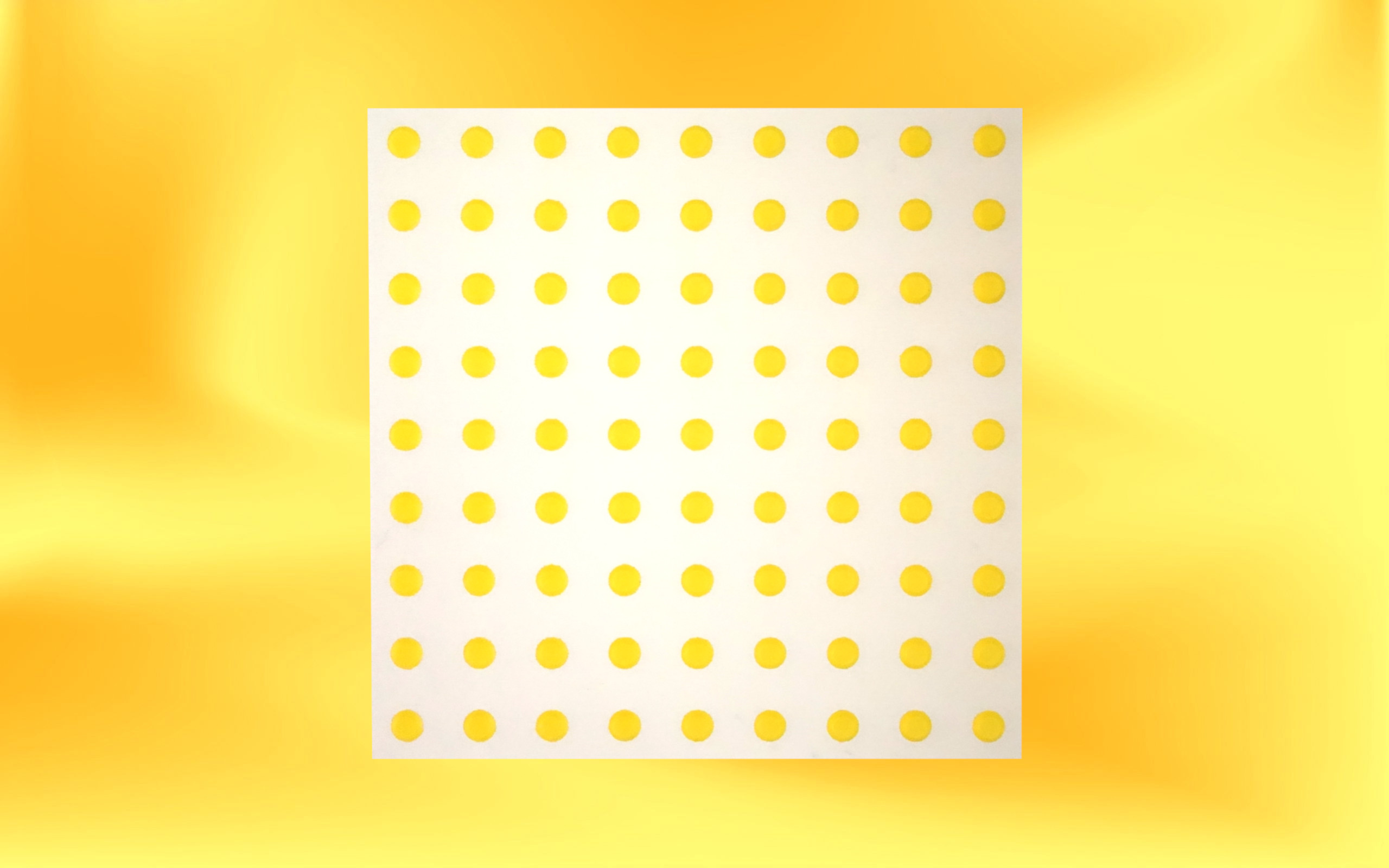

White warning pad with yellow studs

White warning pad with yellow studs

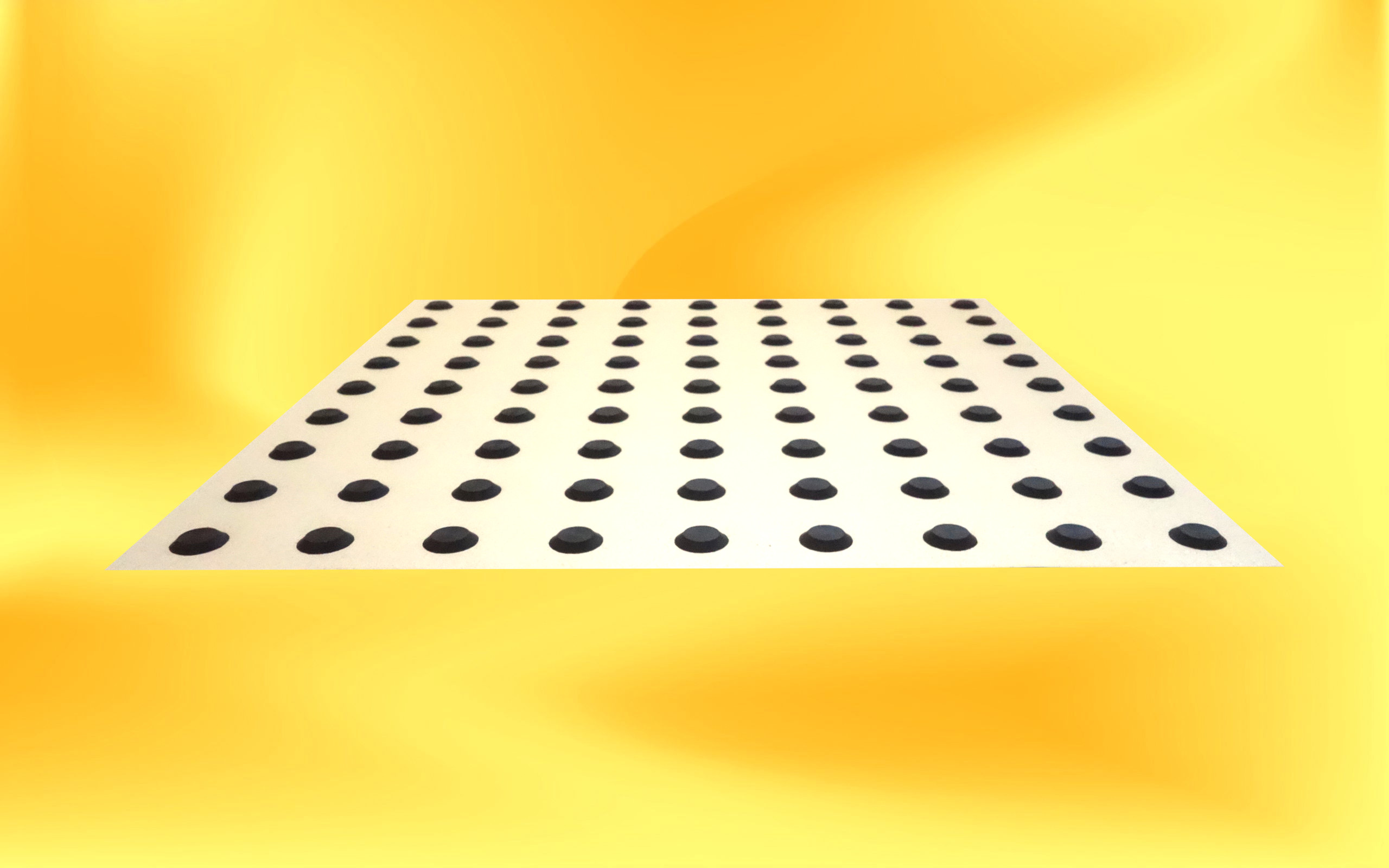

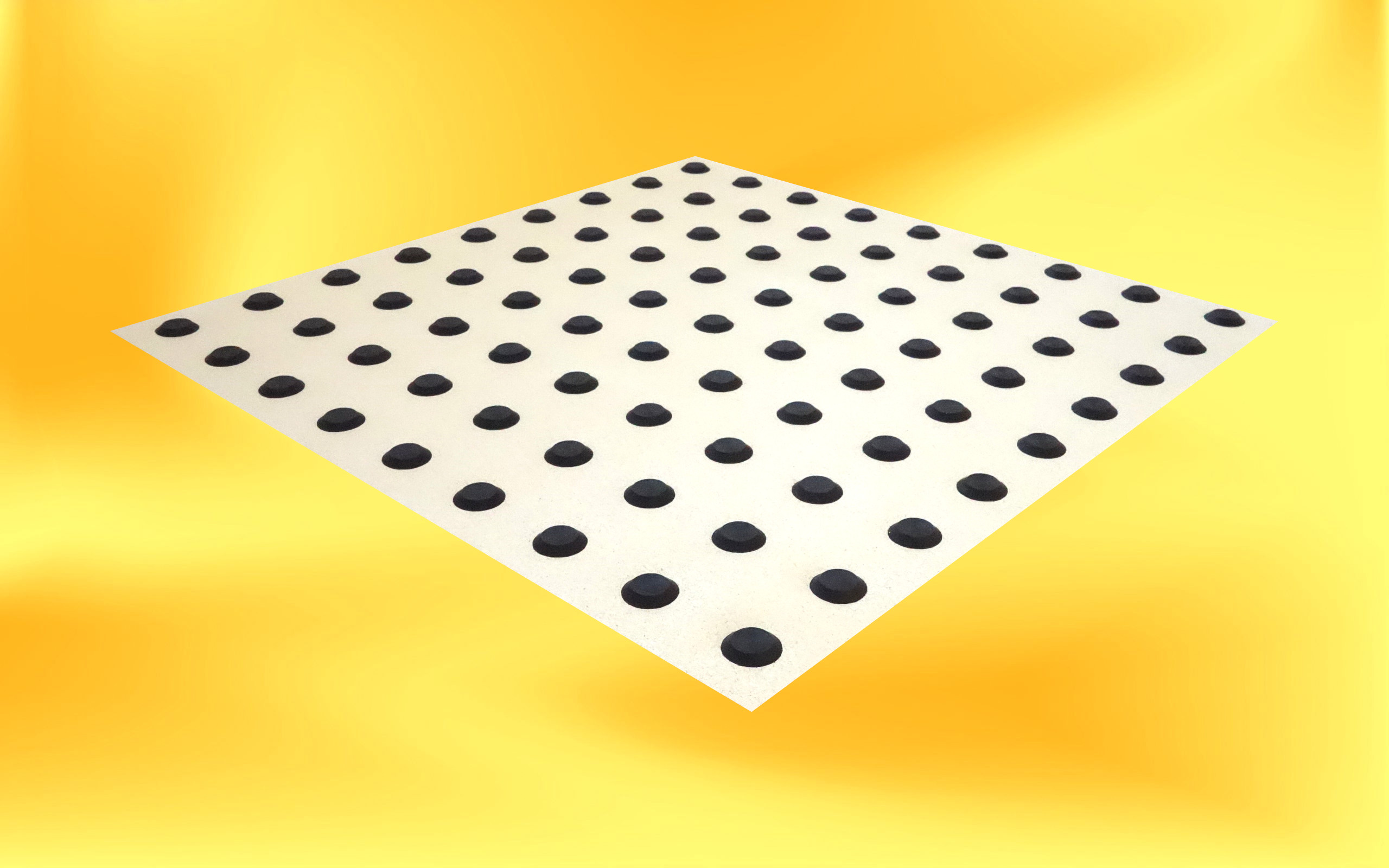

White warning pad with black studs

White warning pad with black studs

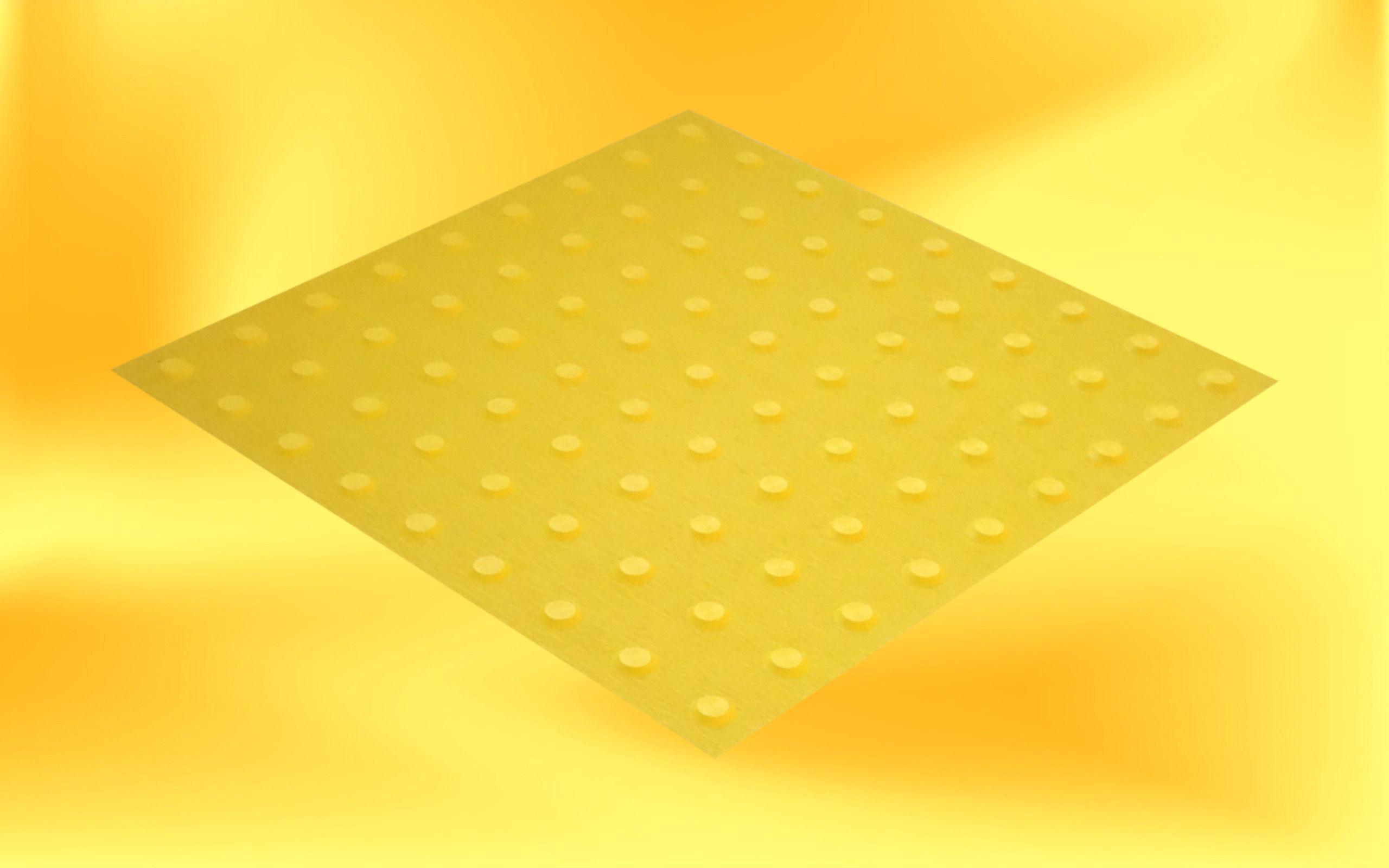

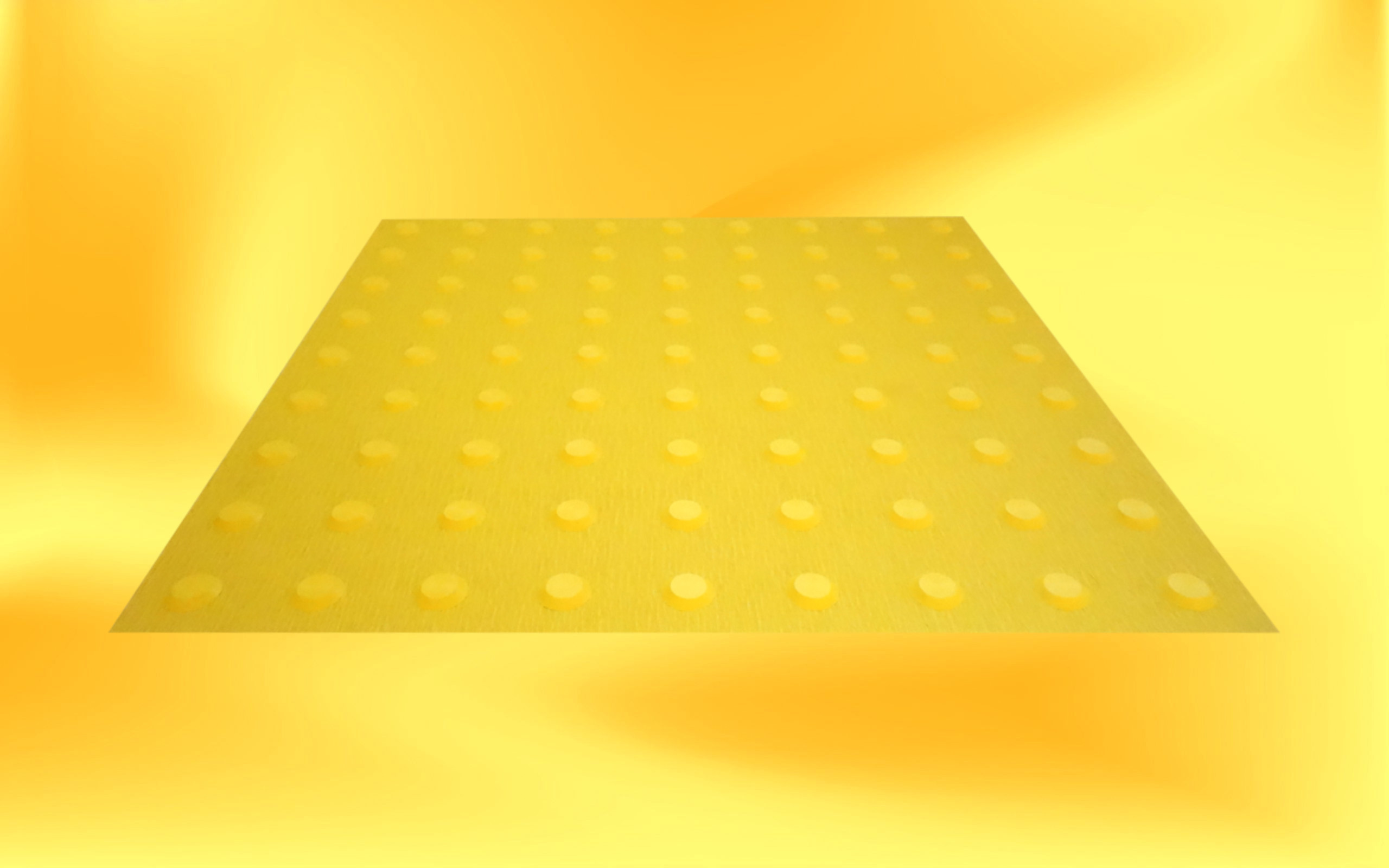

Yellow warning pad with yellow studs

Yellow warning pad with yellow studs

Available colour combinations with order numbers:

ME-2301-S   Warning tactile pad 540×540 mm white/white studs, self-adhesive
ME-2302-S   Warning tactile pad 540×540 mm white/black studs, self-adhesive
ME-2303-S   Warning tactile pad 540×540 mm white/yellow studs, self-adhesive
ME-2304-S   Warning tactile pad 540×540 mm white/gray studs, self-adhesive
ME-2305       Warning tactile pad 540×540 mm yellow/white studs
ME-2305-S   Warning tactile pad 540×540 mm yellow/white studs, self-adhesive
ME-2306       Warning tactile pad 540×540 mm yellow/black studs
ME-2306-S   Warning tactile pad 540×540 mm yellow/black studs, self-adhesive
ME-2307       Warning tactile pad 540×540 mm yellow/yellow studs
ME-2307-S   Warning tactile pad 540×540 mm yellow/yellow studs, self-adhesive
ME-2308       Warning tactile pad 540×540 mm yellow/grey studs
ME-2308-S   Warning tactile pad 540×540 mm yellow/grey studs, self-adhesive
ME-2309       Warning tactile pad 540×540 mm black/white studs
ME-2309-S   Warning tactile pad 540×540 mm black/white studs, self-adhesive
ME-2310       Warning tactile pad 540×540 mm black/black studs
ME-2310-S   Warning tactile pad 540×540 mm black/black studs, self-adhesive
